可挠金属电气导管附件
连接箱连接器BG

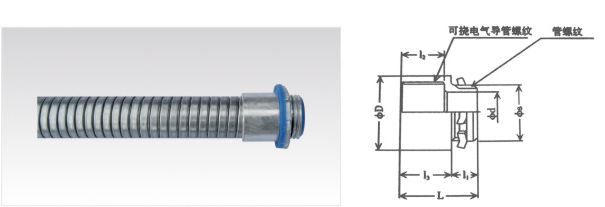

1、BG基本型接线箱连接器与RZ(KZ)-1基本型可挠金属电气导管用螺纹方式连接，另一端与接线箱、接线盒等连接。
2、材质为压铸锌，表面镀锌或镀铬
| 型号 |
可挠金属套管型号 |
可挠金属套管规格 |
L1 mm |
L2 |
L3 mm |
L mm |
ΦD mm |
Φd mm |
ΦS mm |
管螺纹 ″ |
| BG-12 |
KZ |
12# | 12 | 15 | 16.5 | 28.5 | 24.0 | 12.0 | 20.9 | G1/2 |
| BG-15 | 15# | 12 | 15 | 16.5 | 28.5 | 24.0 | 15.0 | 20.9 | G1/2 | |
| BG-17 | 17# | 12 | 18 | 21.4 | 33.4 | 28.3 | 14.5 | 20.9 | G1/2 | |
| BG-24 | 24# | 12 | 20 | 23.4 | 35.4 | 35.5 | 19.7 | 26.4 | G3/4 | |
| BG-30 | 30# | 16 | 22 | 25.4 | 41.4 | 41.6 | 25.9 | 33.2 | G1 | |
| BG-38 | 38# | 16 | 25 | 28.9 | 44.9 | 50.5 | 34.4 | 41.9 | G11/4 | |
| BG-50 | 50# | 18 | 25 | 28.9 | 66.9 | 62.5 | 40.1 | 47.8 | G11/2 | |
| BG-63 | 63# | 18 | 35 | 39.0 | 57.0 | 76.6 | 51.5 | 59.6 | G2 | |
| BG-76 | 76# | 18 | 35 | 39.0 | 57.0 | 90.4 | 66.5 | 75.1 | G21/2 | |
| BG-83 | 83# | 20 | 35 | 39.0 | 59.0 | 95.6 | 79.0 | 87.7 | G3 | |
| BG-101 | 101# | 22 | 40 | 44.5 | 66.5 | 116.6 | 89.0 | 113.0 | G4 | |
| BG-130 | 130# | 24 | 45 | 50.0 | 74.0 | 137.6 | 99.0 | 138.4 | G5 |
